Manufacturer: DEL Packaging
Model: SD-VC Denester
Serial #: 20060613

Additional Information:

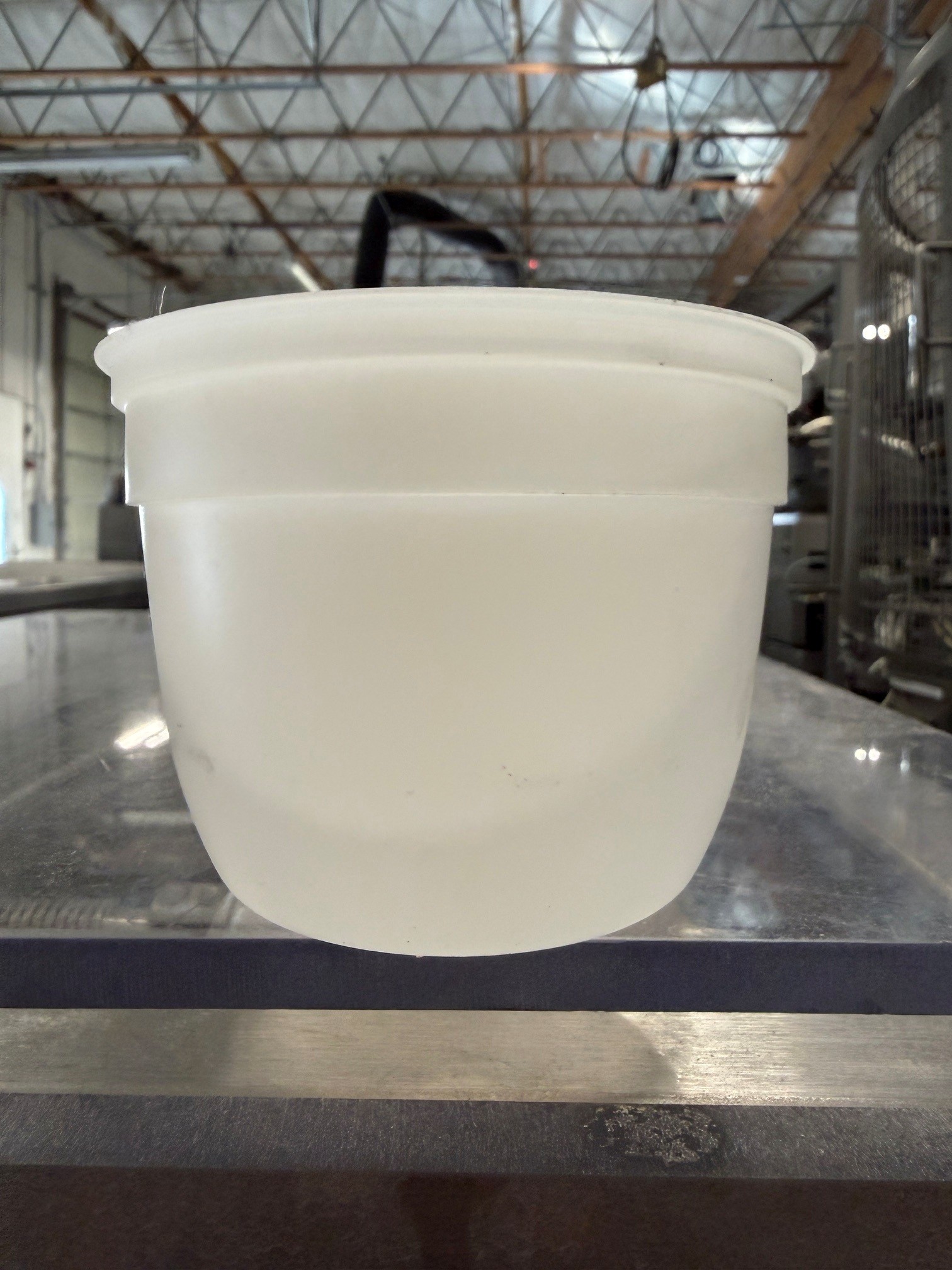

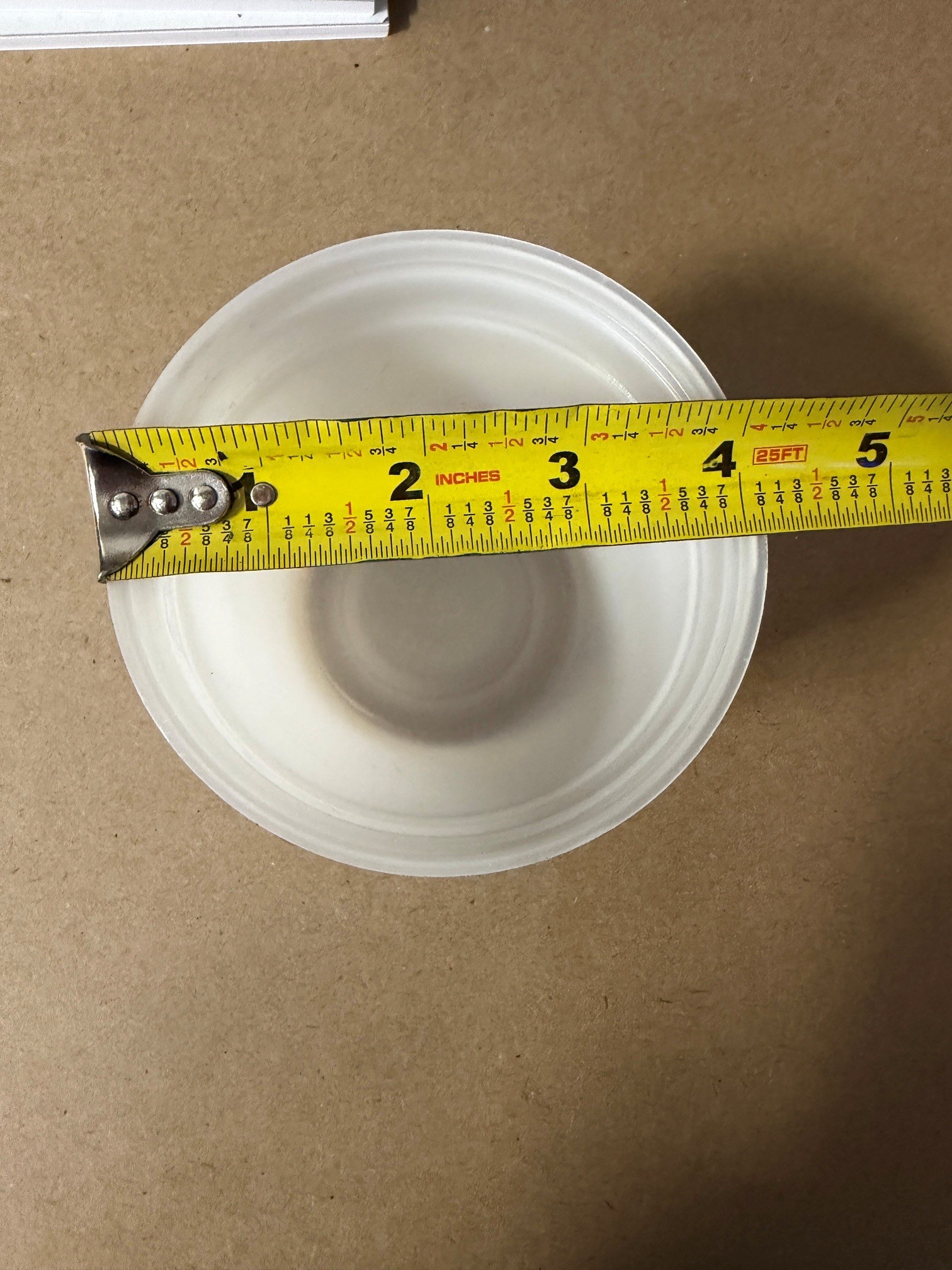

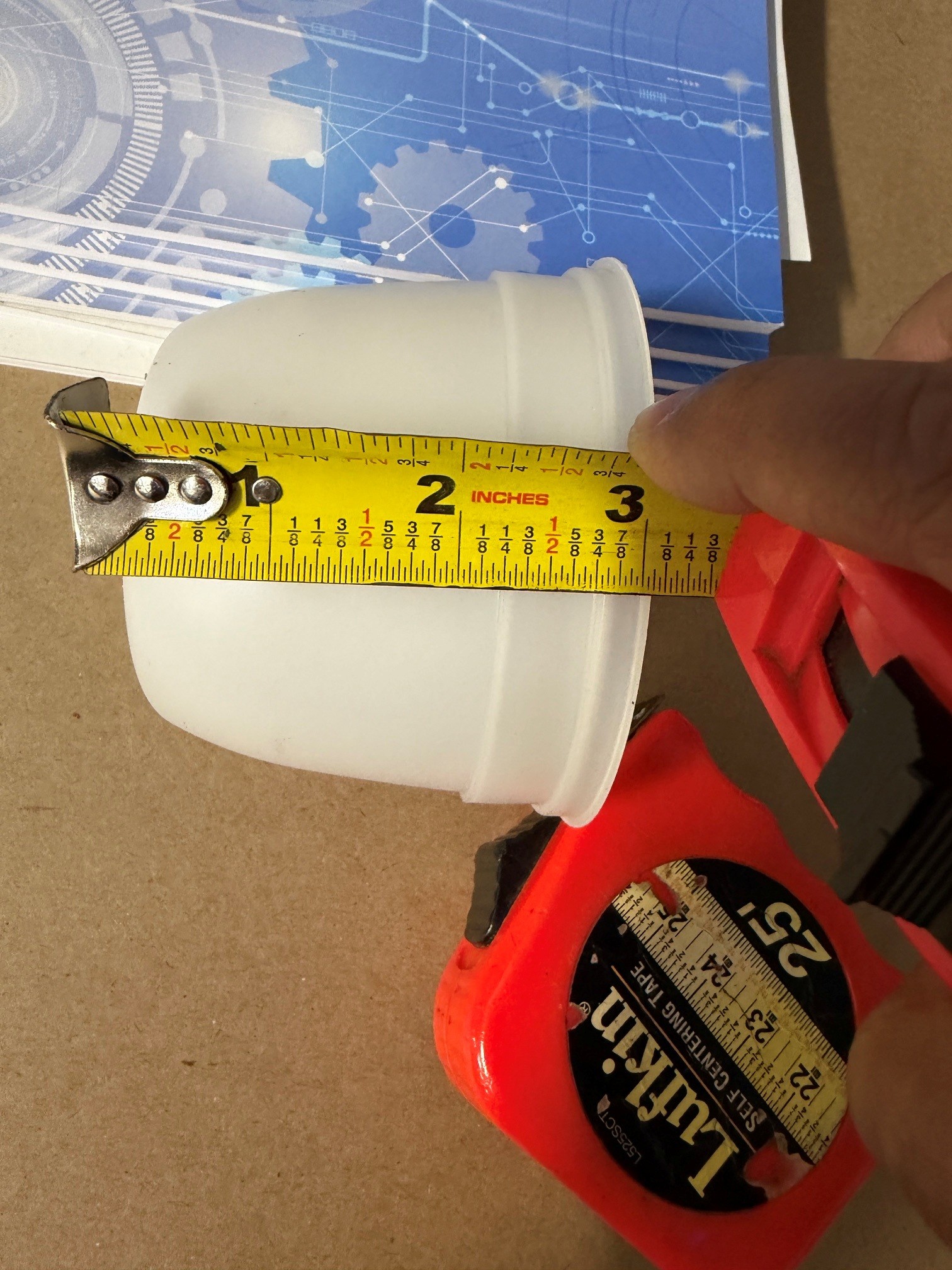

Used DEL Packaging Plastic Cup Denester, model SD-VC. It was last denesting a 401 dia plastic cup x 300 in height. The machine was working prior to removal. It does not include the automatic RCL or VCL loader.

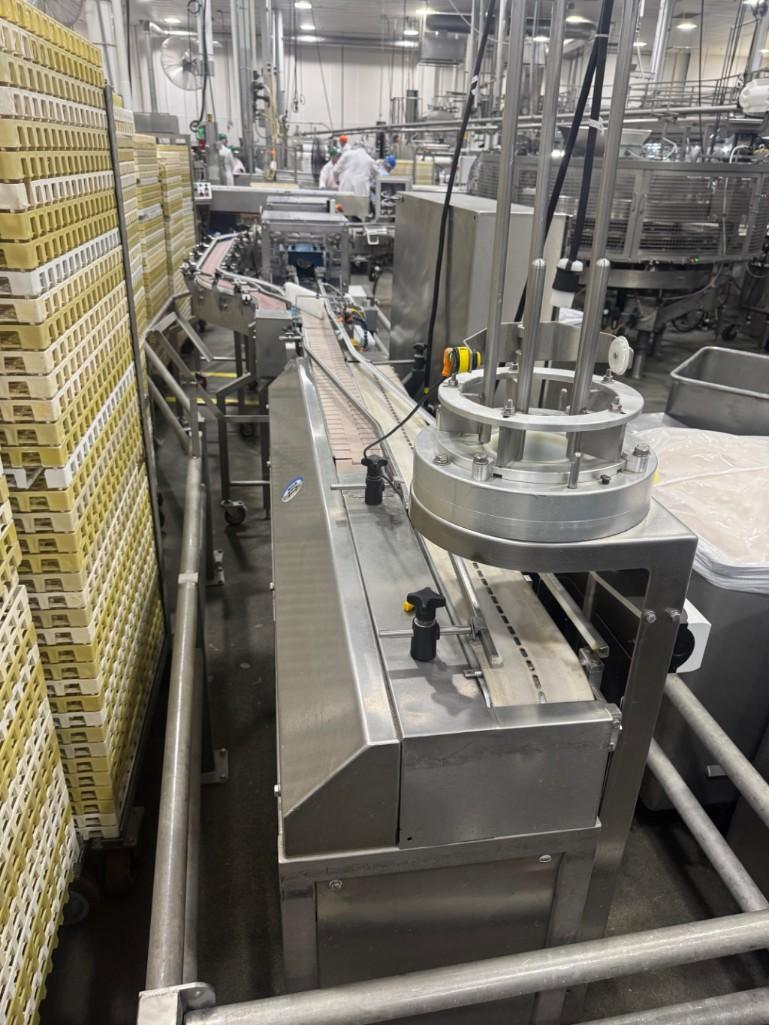

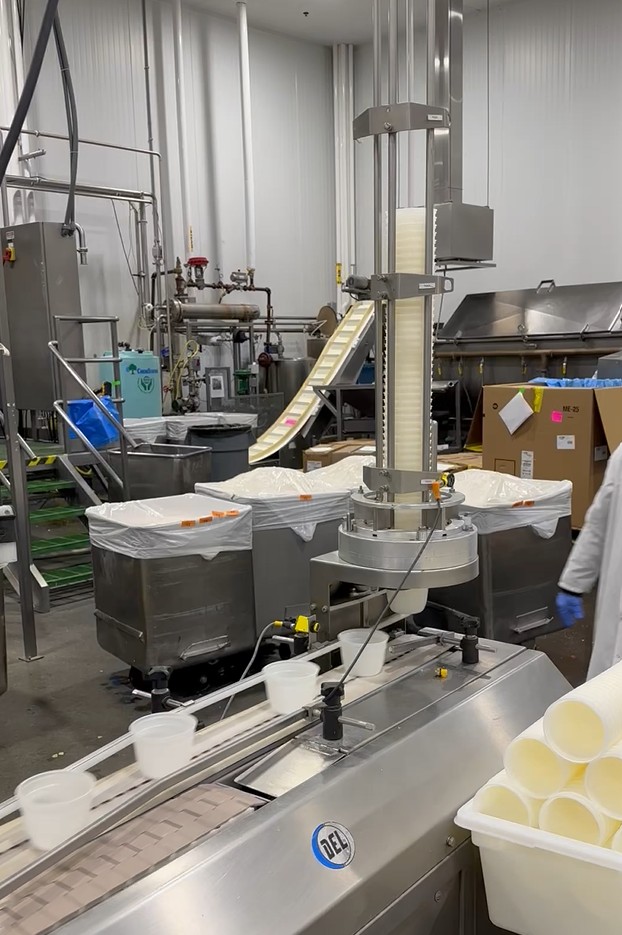

From the manufacturer: The Single Denester with Vacuum Conveyor (SD-VC) separates caps and containers. Caps are loaded into the denester head guide rods by hand or using an RCL or VCL loader. A set of denesting screws at the bottom of the denester progressively separate the caps and containers and releases them onto a belted conveyor where a vacuum suction pulls the cap or container to the conveyor. The product is then transferred to the customer’s conveyor via side transfer.

Applications:
– Metal, plastic, or composite containers and lids
– Round, square, or rectangle products
– 2″ – 6″ diameter containers
– 2″ – 12″ height containers

Specifications:
– Up to 500 CPM
– AB PLC and VFDs
– 5-point contact dispensing head
– Vacuum conveyor for constant container control
– Integrated line controls
– Stainless steel (non-wash down) construction

Sold in As-is, Where-is condition.
