Misc Equipment

Details

Manufacturer: Piranha Metal Fabrication

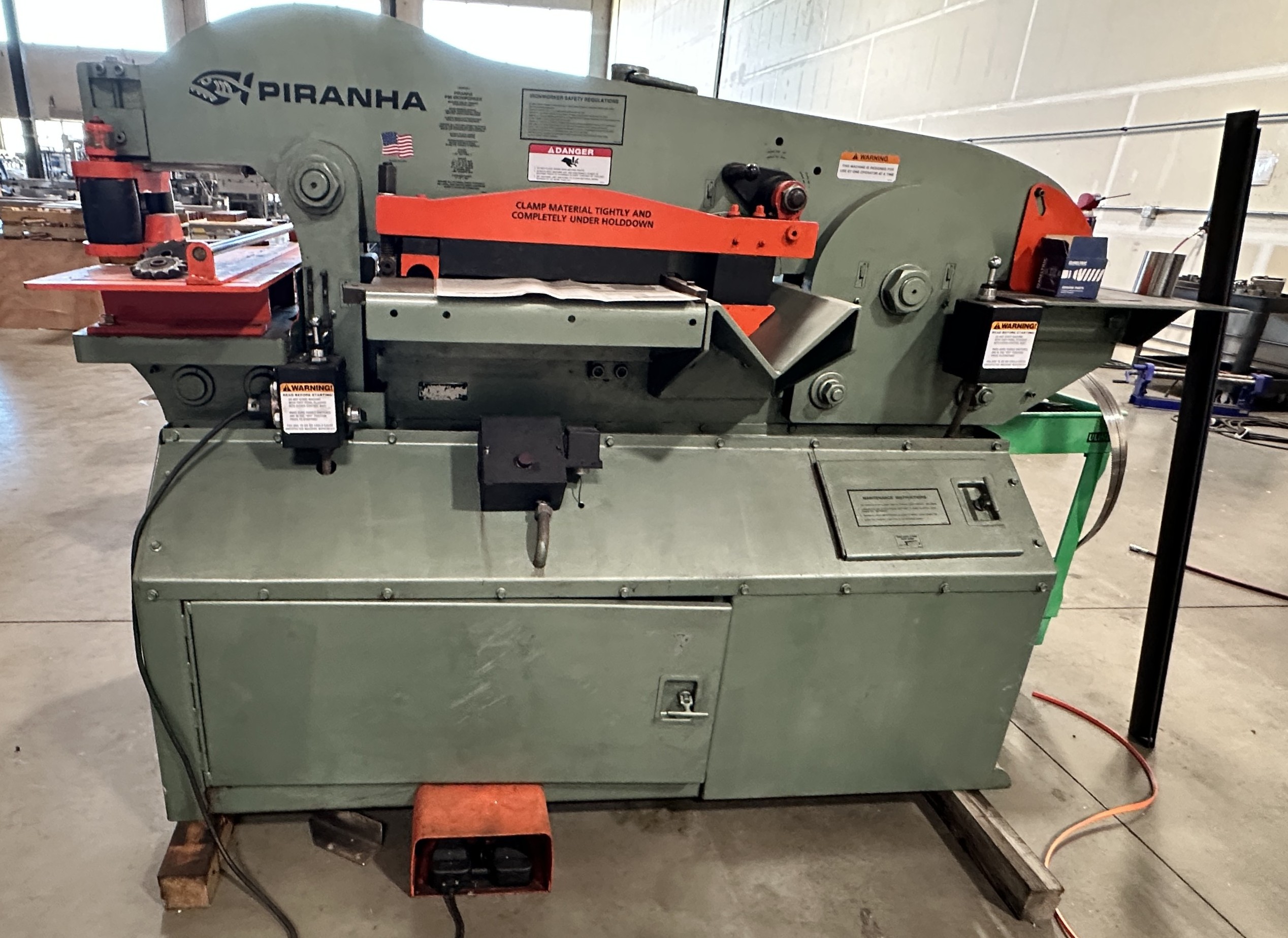

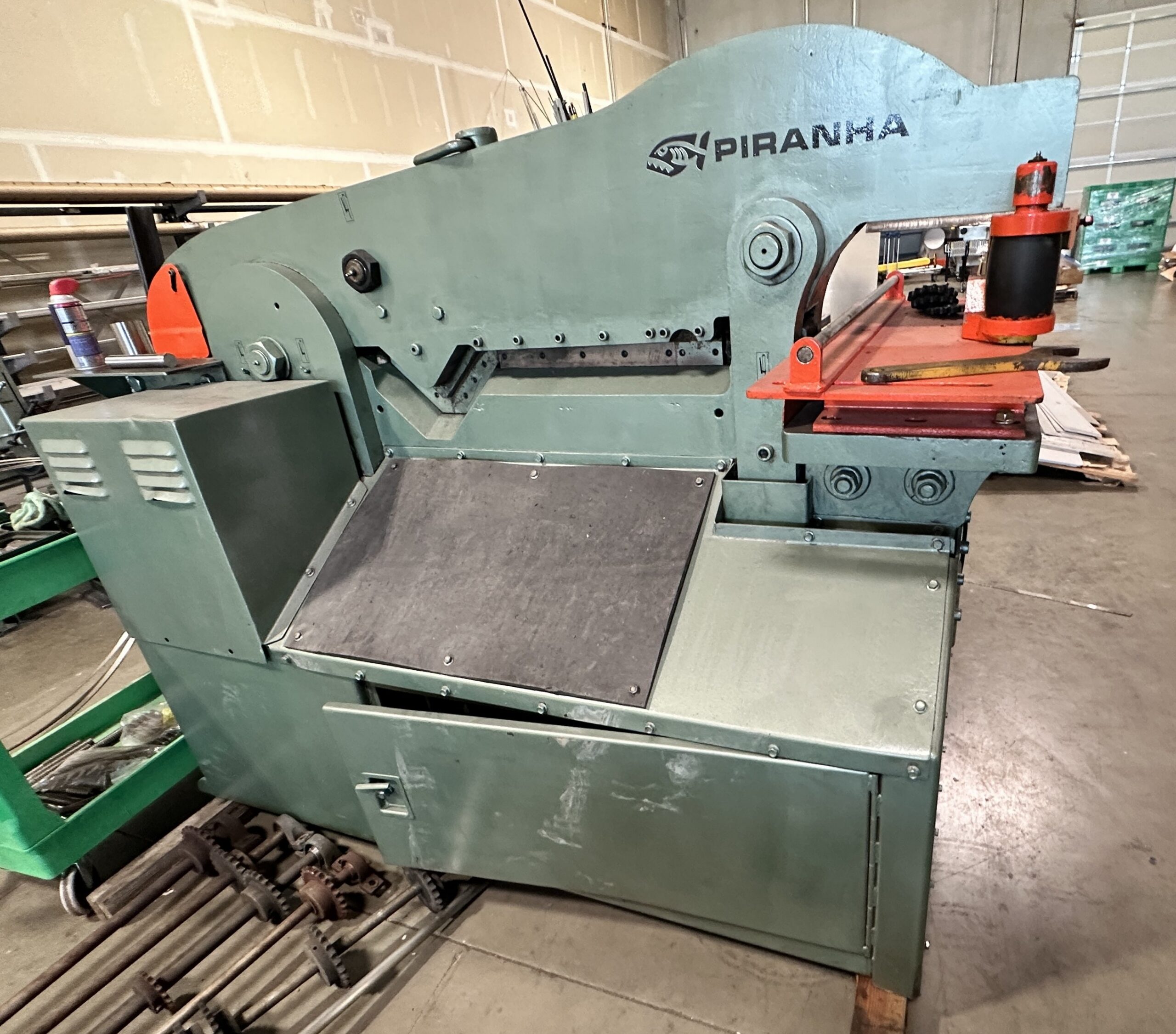

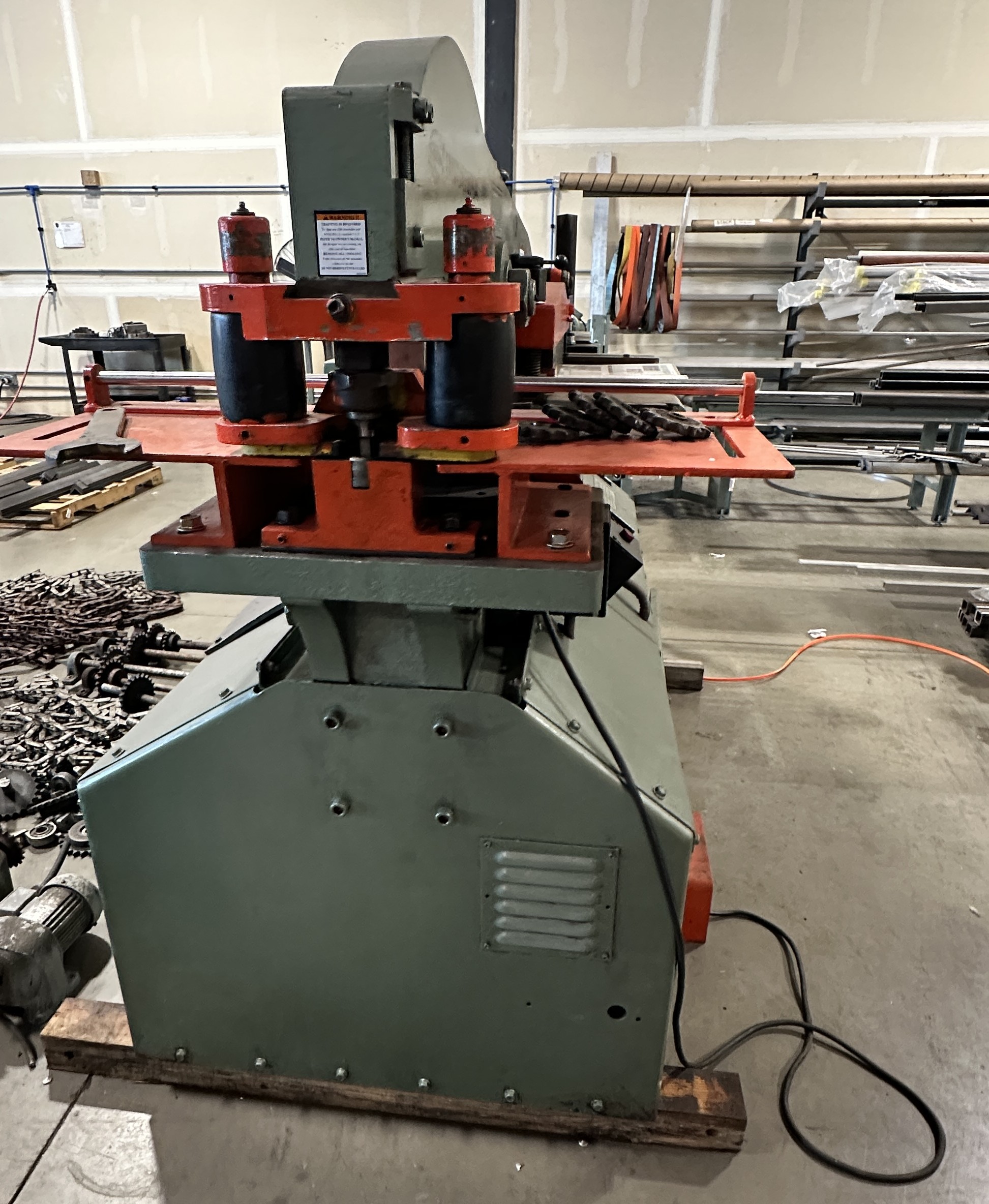

Model: P90 Ironworker

From the manfacturer:
This 90 ton Piranha Ironworker is USA made and features a punch station with a 10-inch throat depth that can punch a 1-1/8 inch hole through 1 inch plate. In addition, an 18-inch flat bar shear, 5×5 angle iron shear, and a coping/notching station make this machine extremely capable for manufacturing or job work. Optional accessories include bending attachments for flat stock and angle iron, oversized punch holders, tube/pipe notching, channel shears, and more.

Technical details:

Stations: 5
•Rated Capacity (tons): 90
•Punching Capacity (Std): 1-1/8 inch OD in 1 inch plate
•Punching Throat Depth (inches): 10
•Punching Work Height (inches): 42
•Flat Bar Shearing Max Width (inches): 1/2 x 18
•Flat Bar Shearing Max Thickness (inches): 1 x 8
•Angle Shear Max Size 90 Deg (inches): 5 x 5 x 1/2
•Coper Notcher Max Cap (inches): 3-1/2 x 5 x 3/8
•Round Bar Shear Capacity (inches): 1/2 to 2
•Square Bar Shear Capacity (inches): 1/2 to 1-3/8
•Stroke (inches): 4-7/8
•Cycle Time: 32 at 3/4 inch (45 at 3/4 with optional Speed-Up Kit)
•Motor (Std): 10 hp, 220/440 volt, 3 phase
•Motor (Opt): 10 hp, 220 volt, 1 phase
•Hydraulics: 10.5 gpm
•Valve Pressure: 2900 psi
•Reservoir Capacity: 25 gal
•Weight (pounds): 4250
•Dimensions (LxWxH): 79 x 31 x 64

The machine is sold in As-Is, Where-Is, condition.
